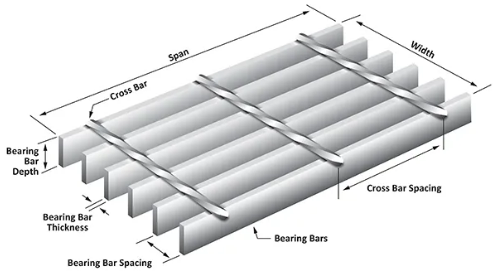

Description
1. Bearing bar: 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2. Bearing bar pitch: 20,25,30,35,40,50,60mm.
US standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16".
3. Cross bar pitch:38,40,50,100.
4. Material: Mild Carbon Steel, SUS304.
5. Surface finishing treatment:Black, electric galvanized,hot dipped galvanized, paint.
6. Standard
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
| Table: Popular Specification of Steel Metal Grating |
| Item | Specifications of
Bearing Bar (mm) | Diameter of
Cross Bar (mm) | Pitch of
Bearing Bar (mm) | Pitch of
Cross Bar (mm) |
| 253 | 25x3 | 6 | 20,30,40,50 | 50,100 |
| 254 | 25x4 | 6,8 | 20,30,40,50 | 50,100 |
| 255 | 25x5 | 6,8 | 20,30,40,50 | 50,100 |
| 304 | 30x4 | 8 | 20,30,40,50 | 50,100 |
| 305 | 30x5 | 8 | 20,30,40,50 | 50,100 |
| 355 | 35x5 | 8 | 20,30,40,50 | 50,100 |
| 404 | 40x4 | 8 | 20,30,40,50 | 50,100 |
| 405 | 40x5 | 8 | 20,30,40,50 | 50,100 |
| 455 | 45x5 | 8 | 20,30,40,50 | 50,100 |
| 505 | 50x5 | 8 | 20,30,40,50 | 50,100 |
| 605 | 60x5 | 8 | 30,40,50,60 | 50,100 |
| 705 | 70x5 | 8 | 30,40,50,60 | 50,100 |
Uses and Application of Metal Bar Steel Grating
Offshore Drilling Oil Platform Metal Grating for Petroleum Project
Flooring
Stairs, stair treads
Sewage drain covers, manhole covers and loading ramps
Racks and shelving
Catwalks,Walkway and crossover platforms
Safety steel grids fence
Bridge sidewalks and bridge decking
Architectural uses like building facades or partitions
Security screens in residential and commercial buildings
Steel bar grating has a vast amount of uses ranging from flooring and stairs to bridges and sewage drain covers. It is a smart choice for flooring and stairs in work areas where slipping and falling are a major concern, such as industrial plants, waste-water treatment facilities, or manufacturing operations. The open design makes bar grating the best option for areas that require the passage of light. It also works well for projects that require fast, easy fabrication and installation.
